KUKA Reels

Category:

KUKA Reels Models

KRC2 cable reels

  • Can be purchased with or without teach pendant cable
  • Can be purchased with 33ft (10 meter) of teach pendant cable
  • Can be purchased with 45ft (15 meter) of teach pendant cable
  • Large reels can be purchased for 20 meter and 30 meter plus applications

KRC4 cable reels

  • Can be purchased with or without teach pendant cable
  • Can be purchased with 33ft (10 meter) teach pendant cable
  • Can be purchased with 66ft (20 meter) teach pendant cable
  • Can be purchased with 100ft (30 meter) teach pendant cable

ALL KUKA cable reels come with:

  • Safety orange paint
  • RAL9010 white paint for aerospace applications
  • 15 ft (5 meter) pigtail cable
  • OEM connectors

ABB, KUKA, Nachi, Sepro Reels Design Information

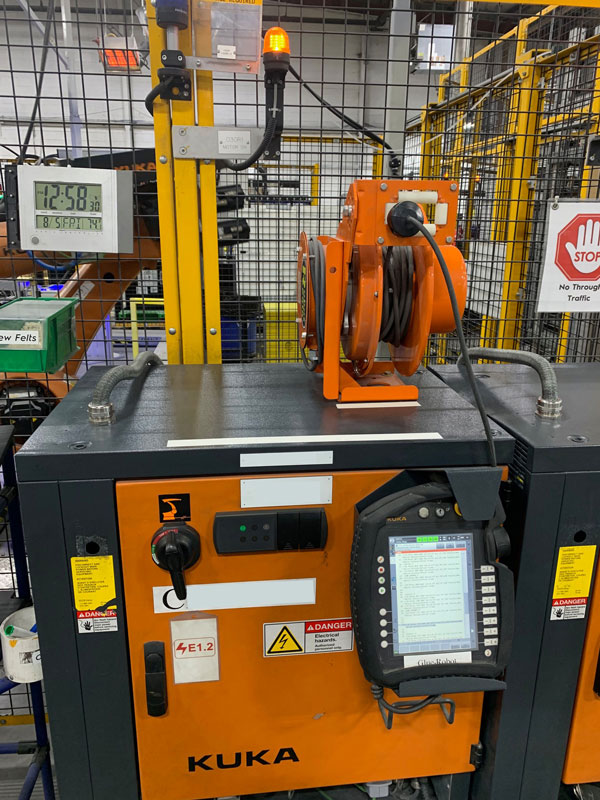

Because these manufacturers make an integrated teach pendant with cable we usually sell our reels as Pigtail Only—15ft/5M cable to the controller cabinet, or any length the customer may want. The customer uses their tp cable/pendant with our reels. They plug their tp cable into the mating connector in the center of the reel.

Because of the integrated design of their tp cable/pendant, customers never change the cable out by itself, they just get an integrated cable/pendant from their MRO. No one is going to take apart a pendant out on the line and try to change the tp cable; there is no time to do this and besides its extremely difficult to do out on the line.

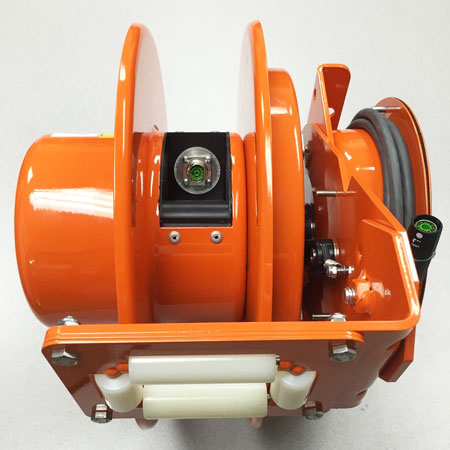

The mating connector in the center of the spool is connected to one side of the slip ring inside, while the pigtail cable is wired to the other side of the slip ring. When the customer plugs their tp cable into the reel’s center connector, the circuit is now complete.

If the customer has a defective tp cable they can unplug it from the center connector in the reel and plug a new tp cable in 5 minutes.
